AutoCAD
Design & Visualization of Floor Layout
When technical details meets creative vision
Challenge
Bridging the gap from a concept into accurate plan

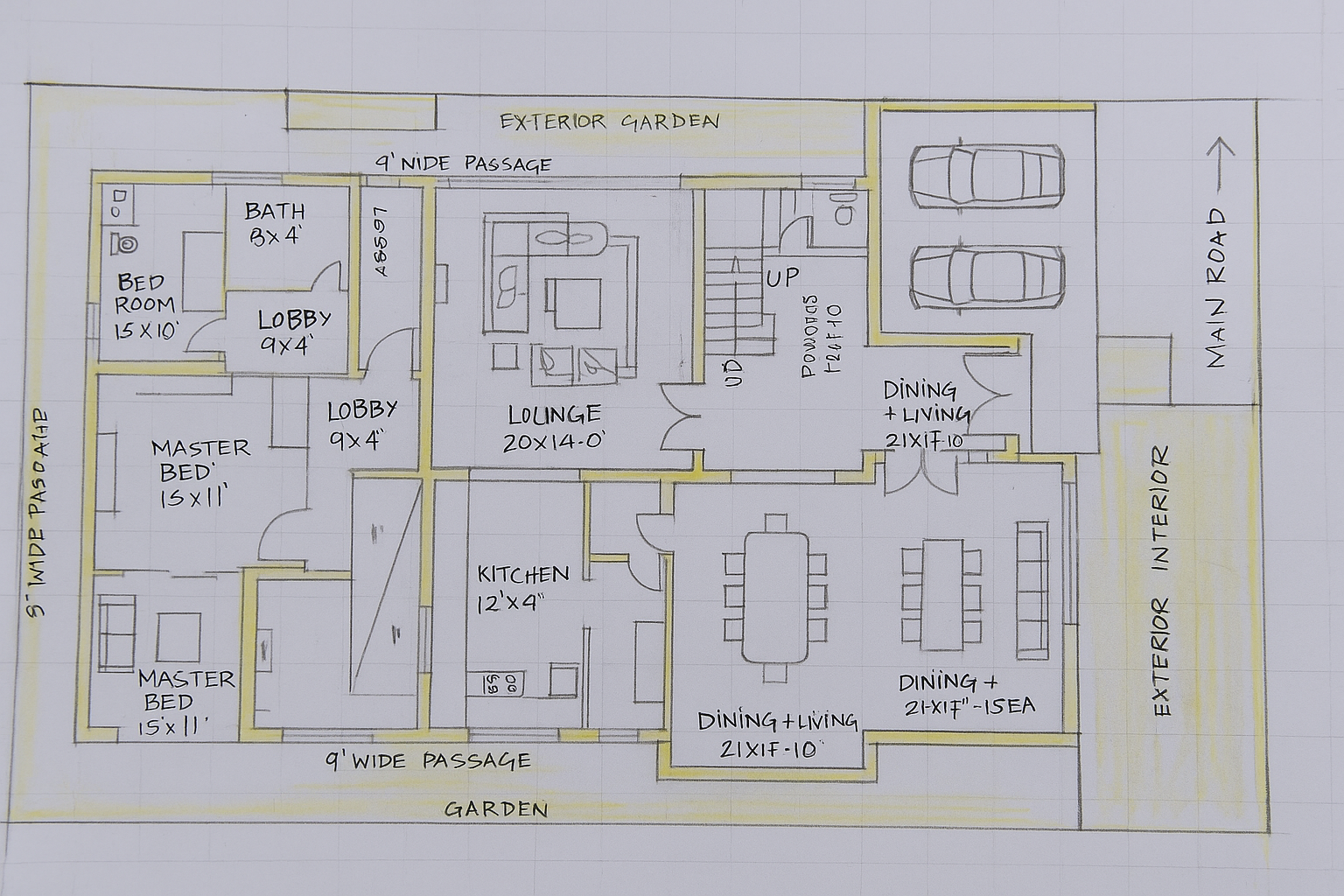

The project began with a hand-drawn sketch of the floor plan, but the challenge was converting this abstract idea into a precise, scalable layout. As my first major AutoCAD project, I faced the complexity of layering, dimensioning, and scale while ensuring the design met real-world standards. To overcome this, I broke the layout into steps.
No items found.
Results
Complete Solution

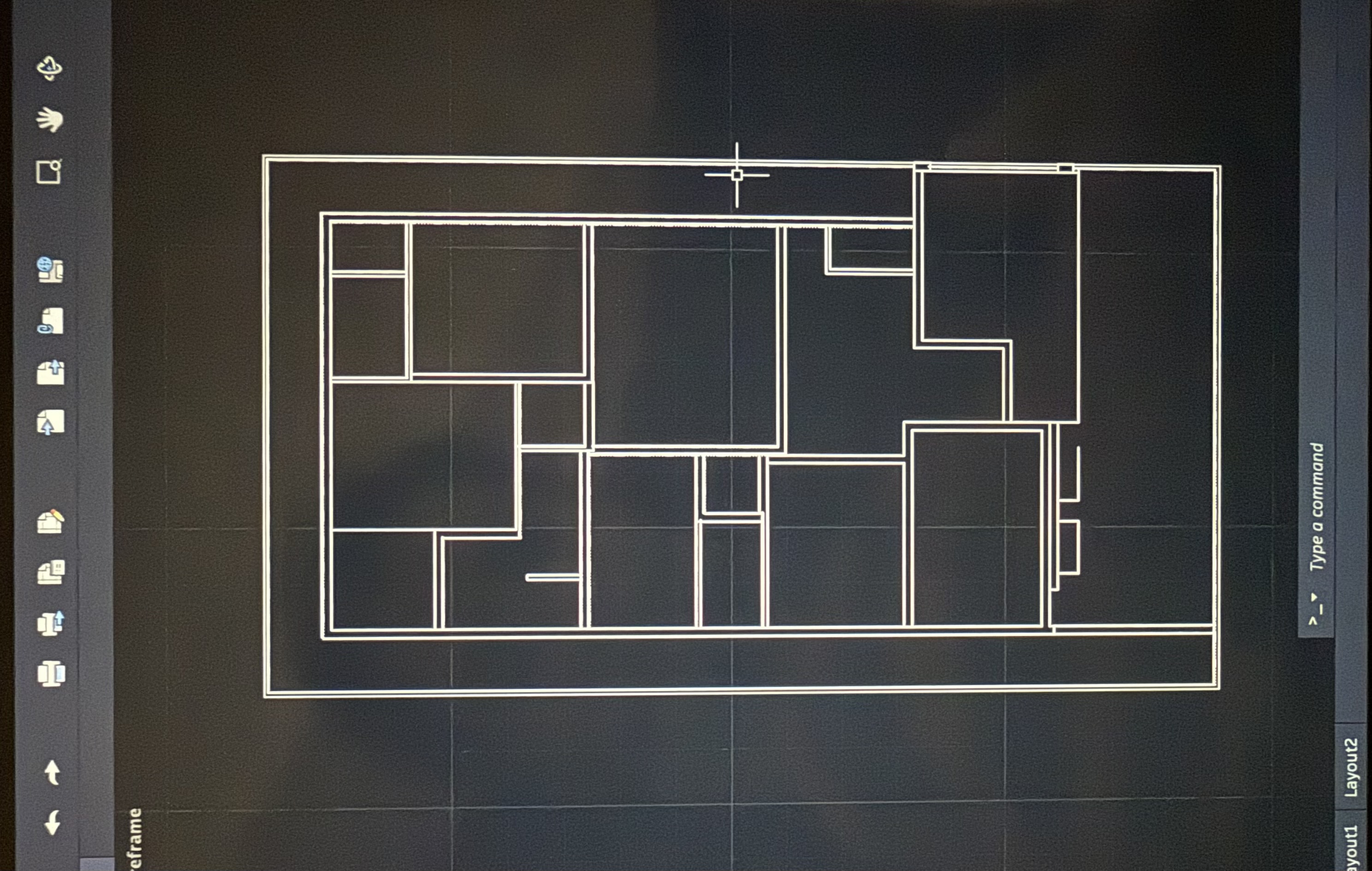

The final floor layout was developed into a complete house structure, demonstrating accuracy in scale, balance in spatial planning, and clarity in visualization. This project highlights my ability to translate concepts into practical, well-structured designs using AutoCAD.
